Replacement Mast Questions

Hi All,

This is my first post so please go easy on me :D
I am fortunate enought to have just become an owner of a Catalina 36 MK2 which is a dream come true.
Unfortunately at one point in its life it has had an incident which resulted in the mast being removed and unrecoverable.
I have found another mast which i am told will fit and the previouse owner of the boat has measured however i would just like to see if anyone on here is able to confirm or knows of any reason i should not go with this particular mast.

The details of the new (second hand) mast are below:

This mast has just been removed from a Swan 36.
Keel stepped double spreader rig.
Selden mast section E177
177mm x 124mm cross section.
0-deck  2.15m
0-vang attachment point 2.35m
0- gooseneck 2.95m
0-1st spreader 6.22m
0-2nd spreader 10.41m
0-top of the mast 14.60m


  I  13.07 m
 J  4.17 m
 P  11.6 m
 E   3.99 m

i am completely new to this so please let me know if you need any more info.
Many thanks

​Russ

Geileis
Hull 1489
1995
Fin Keel
U shape Lounge
Westerbeke M35 engine
Mikuni heating

--
Geileis
Hull 1489
1995
Fin Keel
U shape Lounge
Westerbeke M35 engine
Mikuni heating
Chachere's picture
Chachere
Last seen: 11 hours 9 min ago
Joined: 10/27/10
Posts: 547

   I don't have an answer for you at the moment -- not close to the boat at present, otherwise I'd take some measurements for you.   But at the risk of being seen as an imperial measure chauvenist, however, I'd offer the suggestion that you might want to consider editing your post to also include the measurements in feet and inches.
   I sat this only because my sense is that the great majority of users on this site reside in one of the three remaining nations that (for some inane reason) have yet to adopt the metric system (Myanmar and Liberia being two of them).  So they don't "think" metric, probably don't have metric tape measures on their boats, and may be less likely to get out their calculaters and do the conversions to imperial measure in order to help you out.
   (And yes, perhaps those of us in imperial measurement folks could return the courtesy and post in metric as well!)
   Regards -- and welcome to the C36IA!


--

Matthew Chachère
s/v ¡Que Chévere! #466
1985 C36 MKI tall rig fin keel M25
Homeported in eastern Long Island, NY

Russ's picture
Russ
Last seen: 3 days 7 hours ago
Joined: 10/23/18
Posts: 7

Thanks for you reply Matthew and completely forgot about the conversion. please see below for updated measurements

6.96 x 4.88 cross section
0-deck = 7.05 feet
0-vang attachment point = 7.7 feet
0-gooseneck = 9.67 feet
0-1st spreader = 20.40 feet
0-2nd spreader = 34.15 feet
0-top of the mast = 47.90 feet

I =42.88 feet
J =13.68 feet
P =38.05 feet
E =13.09 feet

Many thanks

Russ

--
Geileis
Hull 1489
1995
Fin Keel
U shape Lounge
Westerbeke M35 engine
Mikuni heating
LeslieTroyer's picture
LeslieTroyer
Last seen: 1 day 11 hours ago
Joined: 3/13/16
Posts: 419

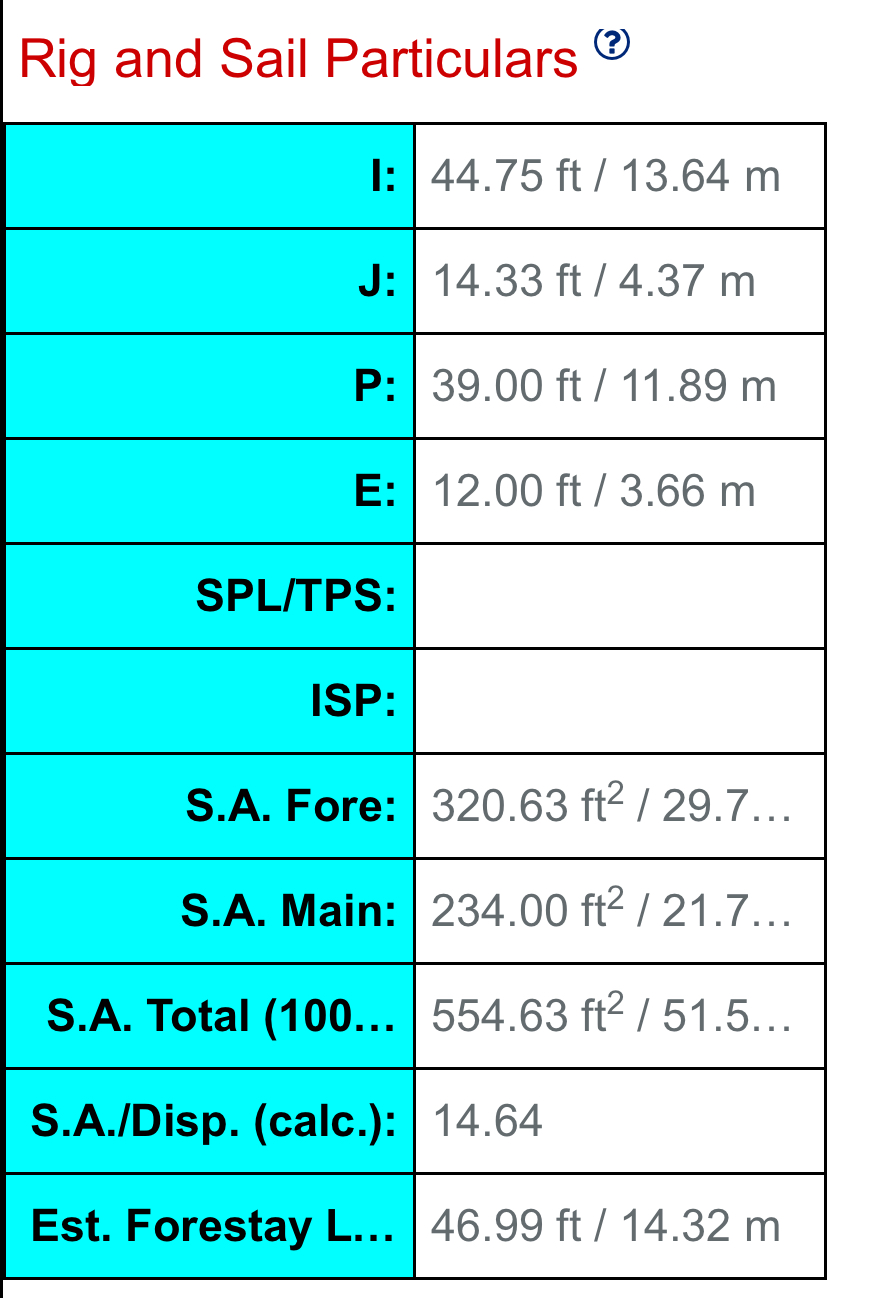

You rig would be a bit short. Here is the measurements from sailboatdata.com I also believe that the 36 was a single spreader rig suggesting that your mast section may be more bendy than the stick Catalina provided.
